Soft Lithography

Anatech SCE 108 Barrel Asher


Anatech USA’s SCE-100 Series Inductively Coupled (ICP) Plasma systems are extremely effective for a Plasma Ashing process to activate a surface prior to bonding PDMS, e.g.

Process gases is O2. Sample sizes are pieces to 100mm round wafers.

Go to Page

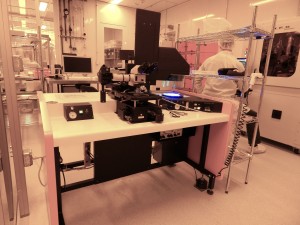

ABM 3000HR Mask Aligner


The 3000HR series Mask Aligner is high resolution, Contact/Proximity Aligner. The system offers precise and repeatable sub-micron alignment and exposure for many wafer and substrate sizes. This includes sensitive, brittle and odd shaped materials. The precision wedge-error compensation vacuum chucks offer consistent mask to substrate planarization for accurate separation adjustment and ease of alignment.


  • 350 Watt UV Exposure System with Intensity Controlling Power Supply
  • 365 nm Output Intensity – Approximately 20-25 mW/cm²
  • 400 nm Output Intensity – Approximately 40-50 mW/cm²
  • Uniform/Collimated Beam Size: 5.0″ Diameter
  • Beam Uniformity: ± 3-5%
  • Adjustable Expose Timer: Adjustable from .1 to 999.9 Seconds
  • Nikon Single Field Binocular Microscope with 5x, 10x, & 20x Objectives, 10x Eyepieces, including Adjustable Coaxial Illuminator.
  • Stationary Mask Alignment Module with X,Y,Z, and Theta Motion
  • Electronic/Pneumatic Operator Control Panel
  • Top Load Vacuum Holders for 4” x 4 and ”5” x 5” Masks
  • Planarizing Vacuum Chuck for Piece Parts (up to 1” Diameter) & 4” Wafers
  • Z axis Adjustment: ±750 µm
  • Mask-to-Substrate Separation: settable in 10 µm increments
  • Front-side Alignment Accuracy: < 0.5 µ

Printing Resolution: Near UV < 0.8µm

Go to Page

Spinner and Solvent Processing Benches

SU-8/PDMS Resist Spinner


  • Maximum speed of 10,000 rpm
  • User friendly programmable interface
  • Programmable step functions (up to 10 steps per recipe)
  • Programmable process control
  • Wafer sizes from pieces through 150mm
Go to Page


Vacuum Oven

Vacuum oven capable of reaching ~10 Torr with digital gravity convection for curing samples from 25-250C

Go to Page

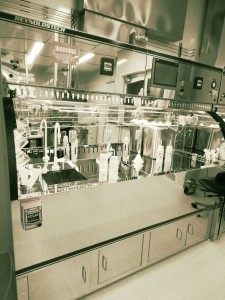

PDMS Process Bench

  • Substrates up to 150mm
  • Solvent develop and PDMS mixing station
Go to Page
