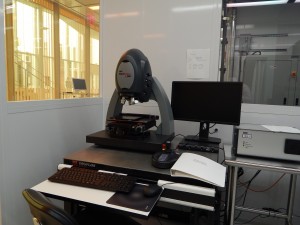

Zygo NewView 7300 3D Surface Profiler

Zygo NewView 7300 3D Surface Profiler

TOOL ID: MET-05

The NewView 7300 white light interferometer (profilometer) is a powerful tool for characterizing and quantifying surface roughness, step heights, critical dimensions, and other topographical features with excellent precision and accuracy. All measurements are nondestructive, fast, and require no sample preparation. Profile heights ranging from < 1 nm up to 20000 µm at high speeds, independent of surface texture, magnification, or feature height!

Using ZYGO’s Coherence Scanning Interferometry (CSI) technology, the NewView™ 7300 3D optical surface profiler easily measures a wide range of surfaces, including smooth, rough, flat, sloped, and stepped surfaces.

Key Features:
• Fast non-contact measurements
• Sub-angstrom Z resolution
• Leading-edge precision & gage capability
• Enhanced optical imaging
